Submersible Pump For Dirty Water
Performance Range
- Max. Flow: 62m³/h
- Max. Head: 29m
Application Limits
- Ambient temperature: 0-40°C . Maximum liquid temperature +40°C
- pH level from 4-10
- Maximum liquid density 1.2x10³kg/m³
- Power Frequency is 50Hz. Nominal voltage is 220VAC
for single phase and 380VAC for three phase with the range from -10% to 10% - Immersion depth from 0.5m-5m
Certificate
 |
|---|
Application Fields

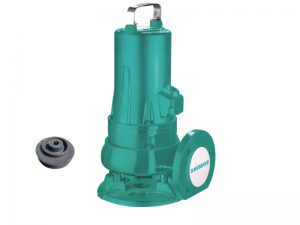

WQ(D)-H1 series pumps are widely applied in industry, agriculture, construction, municipal
environmental protection, etc. They are suitable for draining water containing particles such
as short fibers, paper scraps, etc. and soft solids, such as muddy water, dirty water, domestic
wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and
drainage, pool-silt cleaning and site construction
Features
- Insulation class: F.
- The wear-resistant impeller of QT450-10 material
- Stainless steel shaft extension, carbide double-sides mechanical sealing
- Double channel impeller, good flow capacity, excellent hydraulic performance.

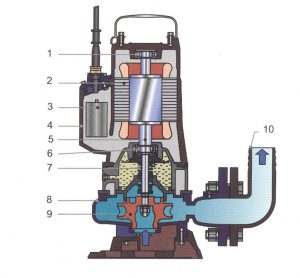

| Power(kW) | 0.55 | 0.75 | |
|---|---|---|---|
| 1 | Capacitor(uF) | 15uF/450V AC |
25uF/450V AC |
| 2 | Upper Bearing |
6202-2RZ | 6202-2RZ |
| 3 | Motor | Dry Motor |
|
| 4 | Motor Casing |
HT200 | |
| 5 | Motor Shaft |
AISI 2Cr13 Steel 45# + AISI 316 |
|
| 6 | Lower Bearing | 6203-2RZ | 6203-2RZ |
| 7 | Mechanical Seal |
208-14/35 S:B/W:S (PTC) |
208-14/35 S:B/W:S (PTC) |
| A: Hot-pressing graphite, K:Impregnated graphite, W:Tungsten carbide (YG6), B:Alumina ceramic, S:RBSC, F:Fluororubber, P:NBR, E:EPR, T:Manganese steel with the surface chromium plated, C:Stainless steel(06Cr19Ni10), H:Brass |
|||
| 8 | Pump Body |
HT200 | |
| 9 | Impeller | HT200 | |
| 10 | Outlet |
HT200 | |
