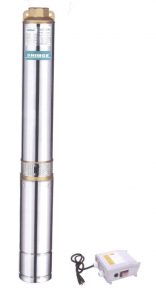

Deep Well Pumps
Performance Range
- Max. Flow: 22m³/h
- Max. Head: 454m
Application Limits
- Max.ambient temperature< 40°C
- Sand content ( in mass fraction ) up to 0.01%
- Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L
- pH 6.5 to 805
- Maximum: 70 m below the static water table.
Certificate
Application Fields
- Building/construction work/Domestic water supply
- Irrigation and small water work
- Landscaping
- Water conservancy system
- Factory.
Features
- Edible oil filled motor, stable & reliable running with pressure regulating membrane
- Single phase motor equipped with start box with built in capacitor & current mode thermal protector, convenient for replacement
- Available with cable with motor plug, dissemble conveniently
- Pump sleeve with screw thread, single stage floating impellers, except 16m³/hrs series with integrated stage floating impellers
- Installation in 4″ or larger boreholes
- We have a large range of different pumps for different boreholes, different flows, at different head ranges from 1.2m³ p/h to 20m³ p/h on 100mm borehole pumps with heads up to 350m depending on application.
25uF/450V AC

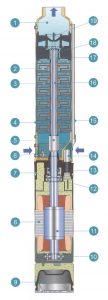

| No. | Component | Material |
|---|---|---|
| 1 | Discharge Chamber | Brass, Casting |
| 2 | Impeller | POM |
| 3 | Guide Vanes | PC |
| 4 | Pump Sleeve | Stainless Steel |
| 5 | Shaft Coupling | Stainless Steel |
| 6 | Inlet Part | Brass, Casting |
| 7 | Oil Chamber | Brass, Casting, Stainless Steel |
| 8 | Stator | — |
| 9 | Pressure Regulating Membrane | NBR |
| 10 | Lower Sliding Bearing | 0.37~0.75 kW:6303 1.1~2.2kW:7303B 3~7.5kW:7304B DT |
| 11 | Rotor | AISI 304 + Steel 45# |
| 12 | Upper Sliding Bearing | 6203 |
| 13 | Mechanical Seal | 118-16/26 S:K(PC) |
| 14 | Cable Joint | — |
| 15 | Cable Guard | Stainless Steel |
| 16 | Pump Shaft | Stainless Steel |
| 17 | Shaft Sleeve | Ceramic |
| 18 | Rubber Bearing | PEUR |
| 19 | Check Valve | PC |
If you would like us to send you a free quotation, or have any inquiries about any of our products and/or services,
Send us all your specifications on the borehole pumps , depth of borehole required amount of water. It was tested and we will select the correct pump for you.
