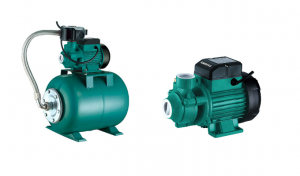

QB Peripheral Pumps
Peripheral pumps are centrifugal pumps with an impeller equipped with a large number of small radial vanes on either side of its periphery. We also supply spare parts for our Peripheral pumps.
| Technical Data | RPM: N=2850 R/MIN(50hz); N=3450 R/MIN (60HZ) |
|---|
| Model | Power | Inlet | Outlet | Max. Flow | Max. Head | Max. Suction |
PRICE Excl. VAT |
|
| Single-Phase | kW | HP | (Inch) | (Inch) | (m3/h) | (m) | (m) | |
| QB60 | 0.37 | 0.5 | 1 | 1 | 1.6 | 33 | 8 | Contact For Price |
| QB80G | 0.75 | 1 | 1 | 1 | 3 | 60 | 8 | Contact For Price |
Technical Specs
• Clean water without abrasive particles, non – aggressive liquid.
• Domestic use.
• In particular for delivering water in combination with small pressure sets and for irrigation
• Installed in enclosed places, or at least protected against inclement weather.
Operating Conditions
• Suction lift up to 8M
• Liquid temperature up to +40 °C
• Ambient temperature up to +40 °C
• Max. working pressure: 6 bar.
Motor
• 2-pole induction motor: 50Hz.
• Insulation: Class B.
• Protectiom: IP 44.
• With capacitor and thermal overload protection.
• Single-Phase
