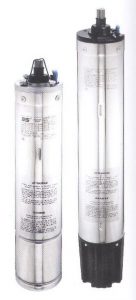

4″ & 6″ Oil Cooled Submersible MOTOR
Italy new technology
Characters
- Meet the requirements of Standard IEC34-1 with fully sealed shaft.
- 6 inches NEMA standard flange connector.
- Swedish angular contact ball thrust bearing equally divides more axial load.
- With stainless steel shaft, Italian mechanical seals.
- Thrust Load: 15,500N for on or under 15kw motors; 30000N for 18.5kw-45kw motors.
- With stand guard, reinforced butyl rubber diaphragm pressure balance device.
Properties:
- Power: three phase, 2.2kW – 45kW
- Voltage: three phase, 230/400V +- 10%, 50Hz direct start
- Protection device class: IP68
- Insulation class: F
- Maximum temperature:35°C
- Minimum water flux through motor: 16cm/s
- pH value of water: 6.5-8.0
- Maximum starts per hour: 20 times
- Flat cable with individual ground wire: 3×6.0mm³ or 3×10.0mm³ waterproof connect cable
- Cable length: 1.5-4m
Certificate
 |
|---|
Material
- High-quality cold-rolled silicon steel lamination.
- Mechanical seal.
- 220°C-resistant lacquer-coated wires.
- High-quality bearing undertaking big thrust load.
- Copper bar rotor.
- Brass alloy or electrophoretic cast-iron or stainless steel 304 upper bracket.
